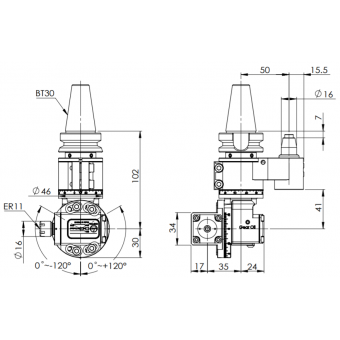

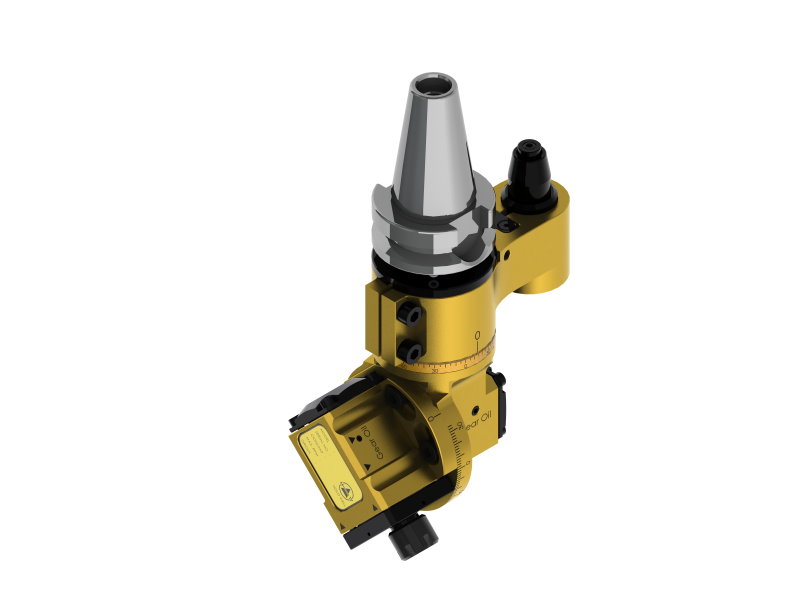

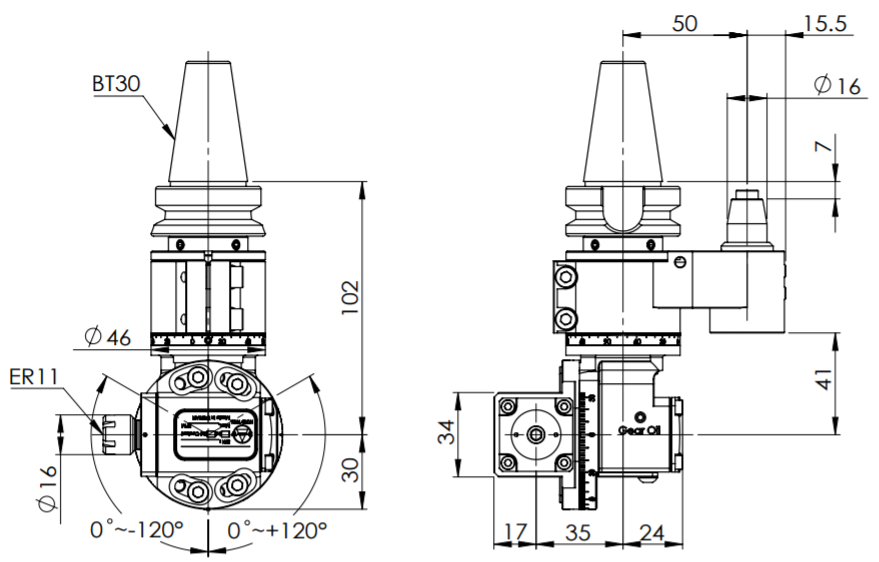

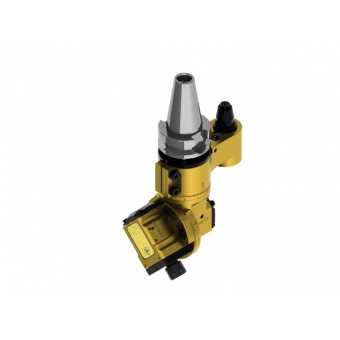

◎ BT30-ER11 Mini Angle Head-Universal?(AHL Type)
◎?Run-out : 0.002 mm
◎?Material : Aerospace Alu. Alloy / Alloy Steel
◎?R.P.M. : Max. 6000 RPM
◎?Torque : Max. 8 Nm
◎?Drilling : Max. 7 mm
◎?Tapping : Max. M6
◎?Gear Ratio : 1 : 0.66
◎?Standard Accessory : M Type Wrench, Pin Wrench, ER Nut
◎?Output Rotation : Same as Input Rotation
◎??Cutting angle can be set from 0°~ ±120°for various applications.
◎??Compact and lighter body design provides extra strength, oil-proof, dust-proof, and duration.
◎??Can be automatic tool changed. Increases productivity.
◎??Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
