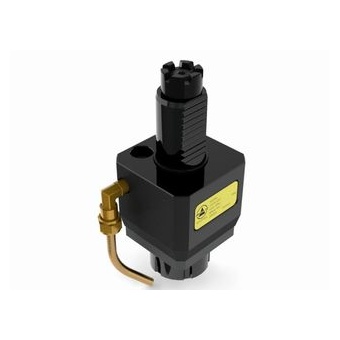

THB-A05-40D VDI40-MT-ER32 軸向動力刀座

產(chǎn)品介紹

m_prod2014042500061
◎ VDI40-MT-ER32 Axial Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret. ?
? ? Dry Cutting & Side Milling ...了解更多

THB-A05-40D VDI40-MT-ER32 軸向動力刀座



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規(guī)格

◎ VDI40-MT-ER32 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.

?

?

?

Dry Cutting & Side Milling
Model：THB-A05-40D
Cutting Tool：Carbide Endmills D16 x 4 Flute
Material：S50C
Speed：956 rpm
Feed：320 mm/min?
Ap：5 mm Ae：16 mm?
Q：30 cm3/min

◎ R.P.M.：Max. 6,000 RPM

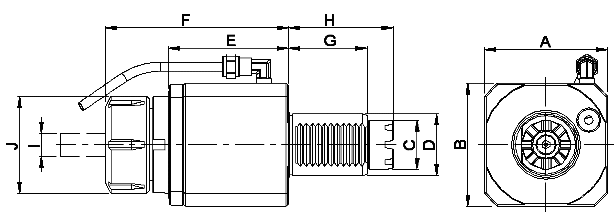

Model No. A B C D E F G H I J N.W. (KG)
THB-A05-40D 78 78 32 40 63 94 51 68 ER32(3~20) 50 3.3

Unit:mm
