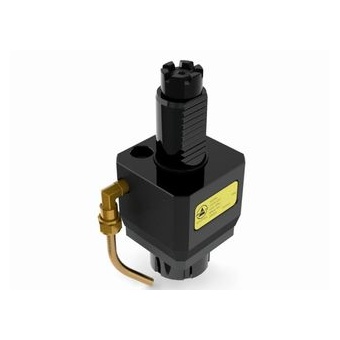

THB-A06-40D VDI40-MT-ER40 軸向動(dòng)力刀座

產(chǎn)品介紹

m_prod2014042500063
◎ VDI40-MT-ER40 Axial Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.

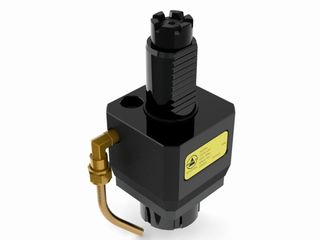

THB-A06-40D VDI40-MT-ER40 軸向動(dòng)力刀座



下載 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規(guī)格

◎ VDI40-MT-ER40 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.


◎ R.P.M.：Max. 6,000 RPM

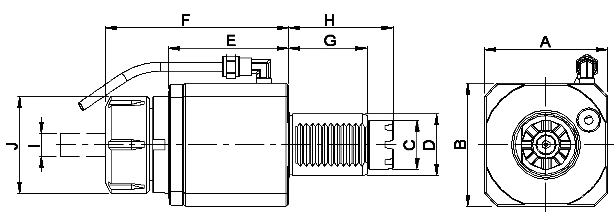

Model No. A B C D E F G H I J N.W. (KG)
THB-A06-40D 80 80 32 40 78 119 51 68 ER40(4~26) 63 4.3

Unit:mm
