THB-D07.102-60DI VDI60-MT-ER50 徑向內(nèi)縮動力刀座(中心出水)

產(chǎn)品介紹

m_prod2014042500051
◎ VDI60-MT-ER50 Radial Offset Driven Tool Holder_Int.◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM ...了解更多

THB-D07.102-60DI VDI60-MT-ER50 徑向內(nèi)縮動力刀座(中心出水)



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規(guī)格

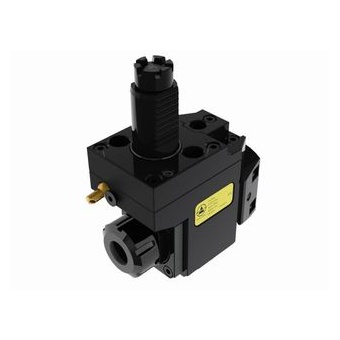

◎ VDI60-MT-ER50 Radial Offset Driven Tool Holder_Int.
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM
◎ Internal Coolant：30 bar

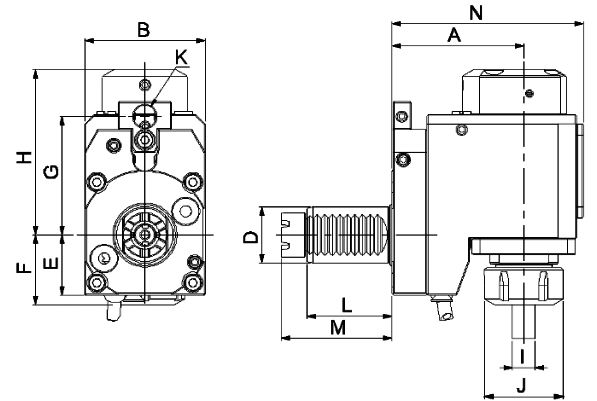

Model No. A B D E F G H I J K L M N N.W. (KG)
THB-D07.102-60DI 102 104 60 54 75 89 138 ER50(12~34) 78 16 78 110 154 14

Unit:mm
